Product Description:

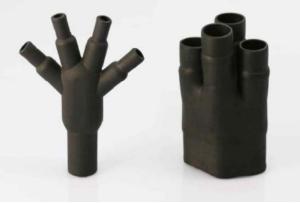

Made of semi-rigid flame-retarded polyolefin.
Features:
• Made of semi-rigid flame-retarded polyolefin.
• Provide strong mechanical protection,strain relief,and complete environmental sealing on cable harness assemblies.
• Provided with or without adhesive lining.
• Standard colour:Black
Applications:
Mostly used to provide sealing and protection for bifurcated cable,especially for the branch cable lapping on the main cable

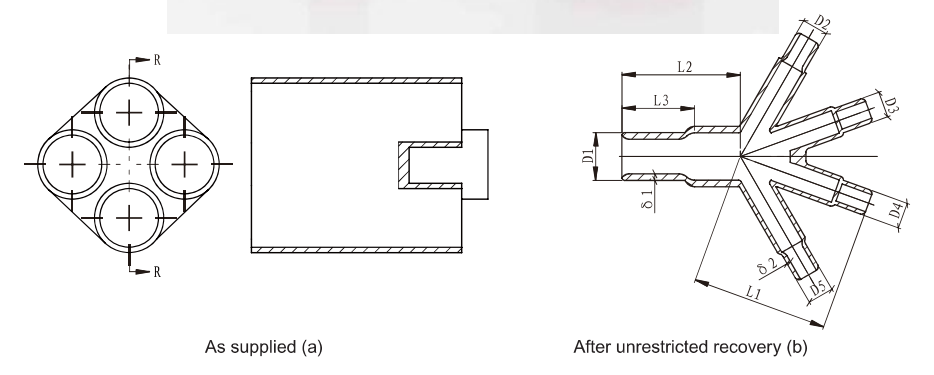

| Product No. | D1 | D2,3,4,5 | L1±10% | L2±10% | L3±10% | ∂1±20% | ∂2±20% |
| As Supplied | After Recovered | As Supplied | After Recovered |
| C411 | 13.2 | 6.9 | 6.6 | 3.4 | 24.1 | 43.2 | 18 | 1.5 | 1 |
| C4121 | 9.3 | 9.7 | 9.4 | 5.3 | 35.6 | 43.2 | 23.1 | 2 | 1.5 |
| C4131 | 19.3 | 9.7 | 3.2 | 6.9 | 49.3 | 50.5 | 25.4 | 2.5 | 1.8 |
| C4141 | 26.9 | 3 | 3.2 | 6.9 | 49.3 | 65.8 | 33.5 | 2.5 | 1.8 |
| C4151 | 38.6 | 8.5 | 9.3 | 9.7 | 71.9 | 95.3 | 46.5 | 3 | 2 |
| C4161 | 55.6 | 26.7 | 26.9 | 13 | 1.6 | 135.1 | 65.5 | 4.5 | 2.5 |
unit mm
Customization:
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
